Set of coaxial adapters

Shield attenuation min. 100 dB

Wear-resistant coating, cable protection

High parameters stability

Operating temperature: −60 °C...+85 °C

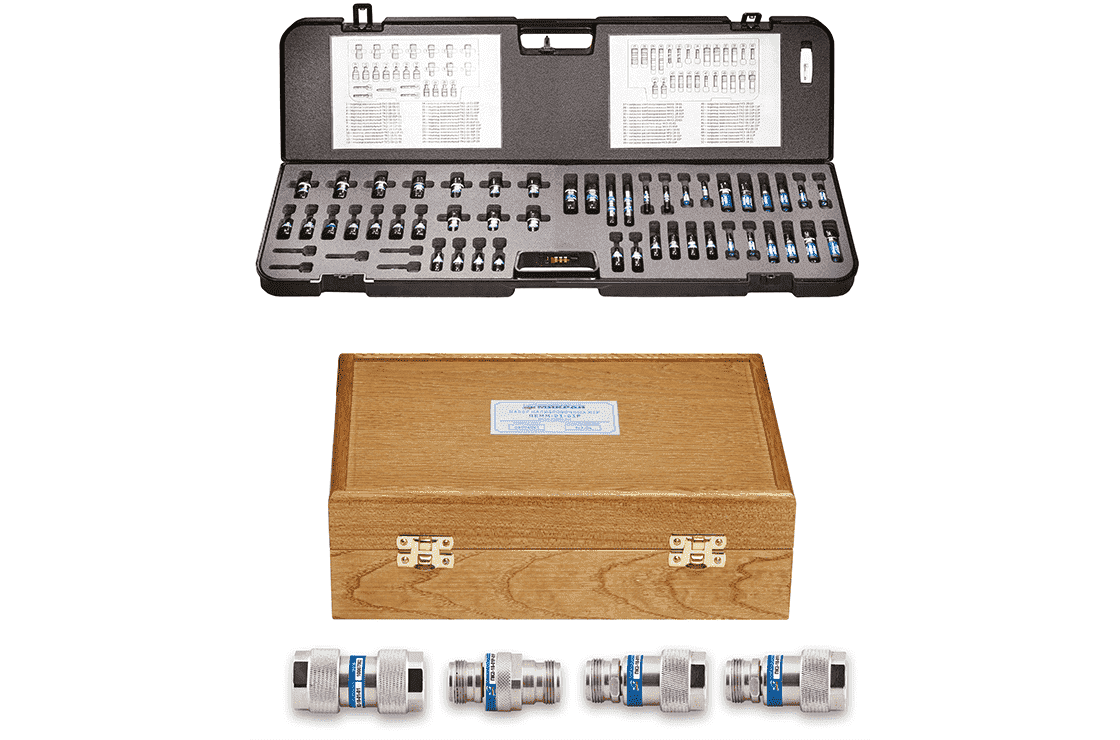

he measuring adapters kits are composed in accordance with their functional purpose — to connect devices in 3.5/1.52 mm, 7.0/3.04 mm paths and between 3.5/1.52 mm and 7.0/3.04 mm paths with both metric and inch connectors. The kits including adapters with lowest typical VSWR and insertion loss are perfect for laboratory measurements. They are supplied in wooden cases with antistatic cradle.

Used materials and adapter design provide low loss and reflection level, high stability of parameters for a great number of connect/disconnect cycles at operating temperatures between −60 °C and +85 °C. Minimum screen attenuation is 100 dB. Custom adapters with maximum operating temperature up to +110 °C are available for ordering.

Specification

Coaxial adapters kits
814 КБ
