Power dividers

Frequency range: 0 to 26.5 GHz

Minimum 3000 connections

High performance stability

Low refraction and attenuation unevenness

Operating temperature: −60...+110 °C

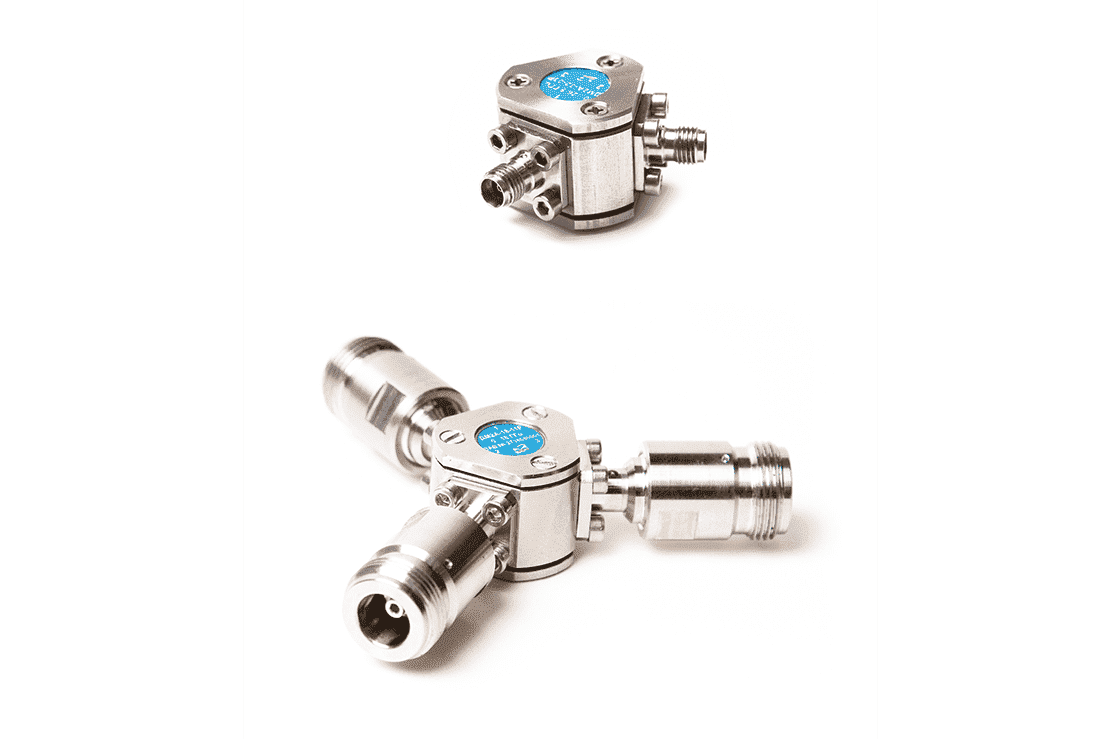

Power dividers are intended for signal splitting and integration in a wide frequency range. Micran presents two- and three-resistor power dibiders of DMS and DM series, executed in a 3.5/1.52 mm coaxial tract and operating in a 0...26.5 GHz band. The devices differ in pronciple diagrams, ports resistance and application fields.

Parameter

Value

Power splitters DM2A series

DM2A-18-01R

DM2A-18-11R

DM2A-26-03R

DM2A-26-13R

Connector

Type III (female)

Type N (female)

Type IX, opt. 3 (female)

Type 3.5 mm (female)

Frequency band, GHz

0…18

0…26.5

Ports VSWR, max.

1,15 (0…12 GHz)

1.2 (12…18 GHz)

1,15 (0…20 GHz)

1.25 (20…26.5 GHz)

Gain between outputs, dB,

min.

−6.5 (0…18 GHz)

−6.5 (0…20 GHz)

−7.5 (20…26.5 GHz)

Difference Gain dB, max.

0,3 (0…18 GHz)

0,3 (0…20 GHz)

0.5 (20…26.5 GHz)

Phase difference, max.

5° (0…18 GHz)

3° (0…20 GHz)

5° (20…26.5 GHz)

Pin*, Wt, max.

2**

2**

Power splitters DMS2A series

DMС2A-18-01R

DMС2A-18-11R

DMС2A-26-03R

DMС2A-26-13R

Connector

Type III (female)

Type N (female)

Type IX, opt. 3 (female)

Type 3.5 mm (female)

Frequency band, GHz

0…18

0…26.5

VSWR on input, max.

1,15 (0…12 GHz)

1.2 (12…18 GHz)

1,15 (0…20 GHz)

1.25 (20…26.5 GHz)

VSWR, on outputs, max.

1,7

КП input-output, dB, min.

−6.5 (0…18 GHz)

−6.5 (0…20 GHz)

−7.5 (20…26.5 GHz)

Isolation output-output, dB

-12 ± 2

Difference Gain dB, max.

0,3 (0…18 GHz)

0,3 (0…20 GHz)

0.5 (20…26.5 GHz)

Phase difference, max.

5° (0…18 GHz)

3° (0…20 GHz)

5° (20…26.5 GHz)

Pin*, Wt, max.

2**

2**


NOTICE

* Maximum lasting power dissipation on direct current.

** Value given for normal climatic conditions. In case of ambient temperature elevation we recommend input power decrease.
