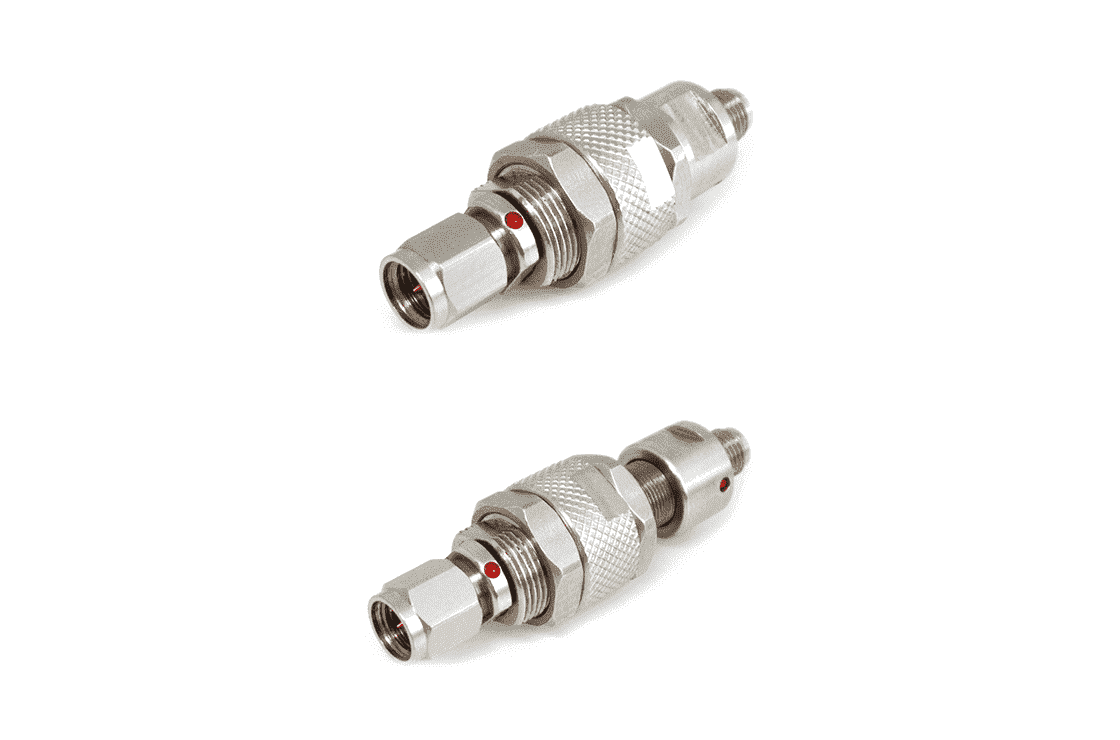

Coaxial phase shifter

Frequency range: 0 to 20 GHz

Minimum 3000 connections

High performance stability

Low refraction and attenuation unevenness

Operating temperature: −60...+110 °C

arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

FK20-03R-03-110 coaxial phase shifter is designed to trim and adjust electrical length of transmission line in radioelectronic communication systems where high accuracy of phase value is required. Coaxial phase shifter provides variation of communication line electrical length with a small increment, maintaining VSWR and insertion loss level. The coaxial phase shifters operate at frequencies between 0 and 20 GHZ at temperatures between -60 °C and +110 °C. Their bodies and nuts are made of stainless steel. Their central conductors are made of tempered beryllium bronze plated with wear-proof gold, which provides at least 3000 connect/disconnect cycles.

Specification

Coaxial phase shifters
