Y-Split

4…15 GHZ (IDU + ODU)

"COLD" START FROM −60 °С

LIGHTNING PROTECTION

CAPACITY UP TO 1.8 Gbps

INTERFACES 4 × GE + 96 × E1 + 4 × STM-1

Low CAPEX

Y-Split is a universal solution for building high-speed multi-trunk multi-span radio relay communication lines of various lengths.

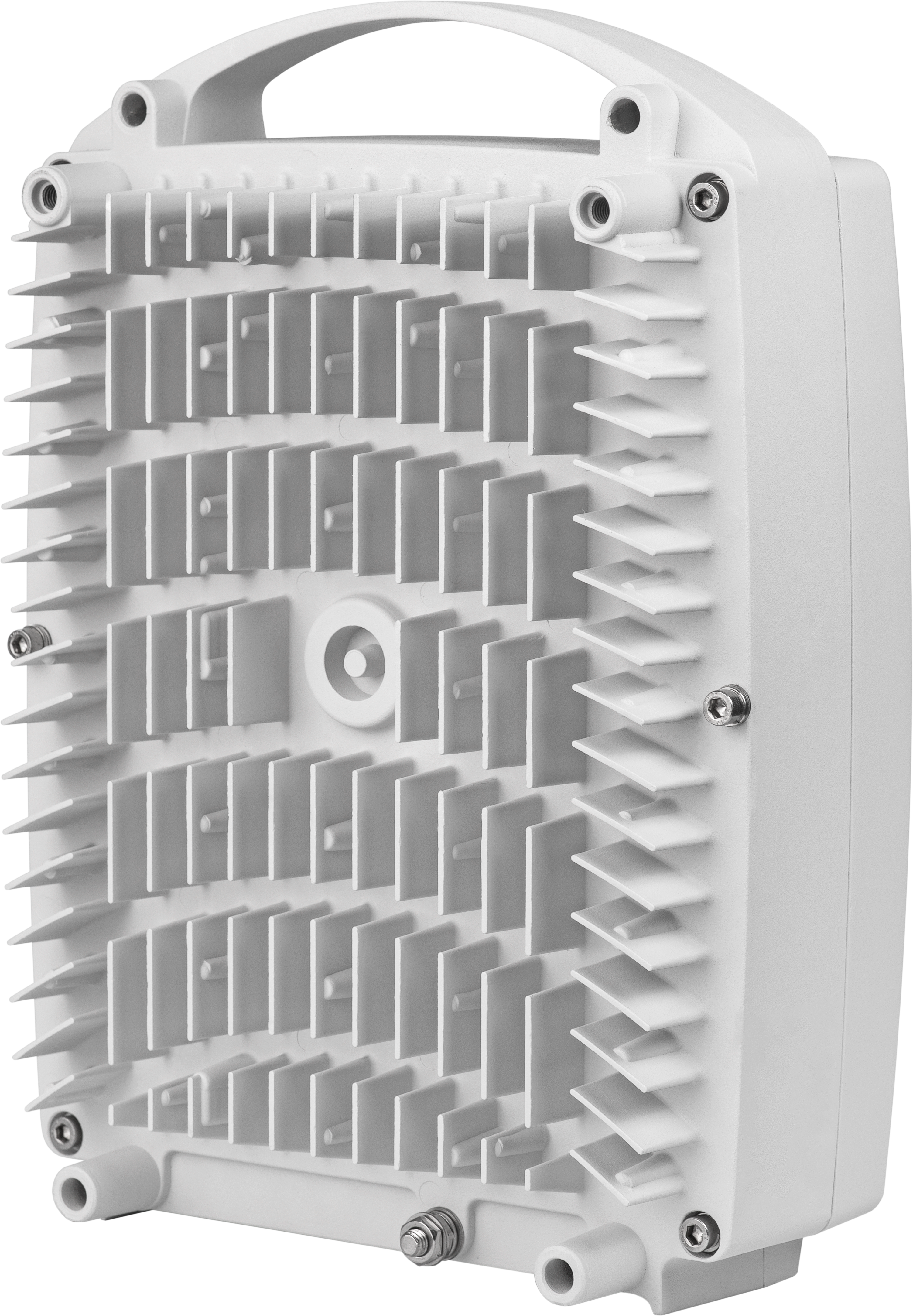

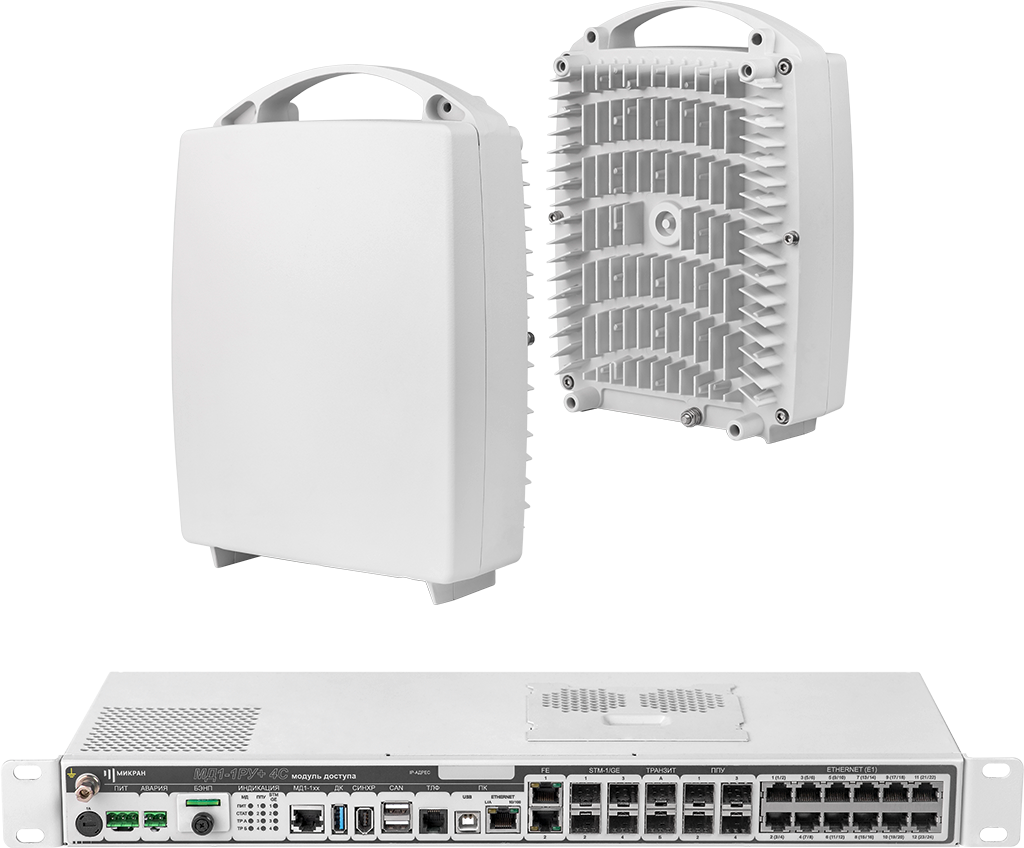

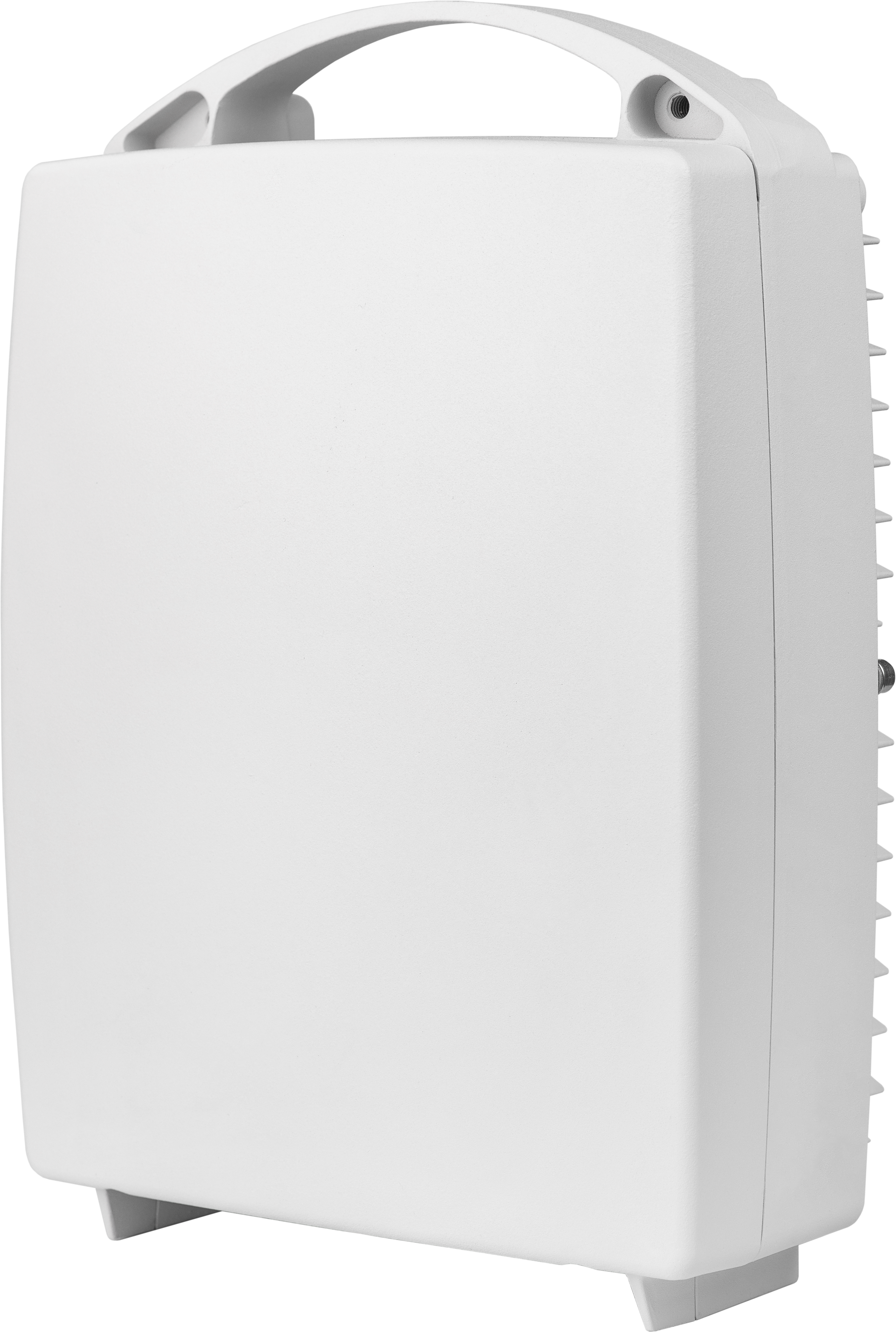

Compact split-mount solution with outdoor transceiver minimizes initial costs of a network set-up. Optical reduction cable provides a full lightning protection of "lower" equipment and eliminates EMC problems with feeders of other radio systems.

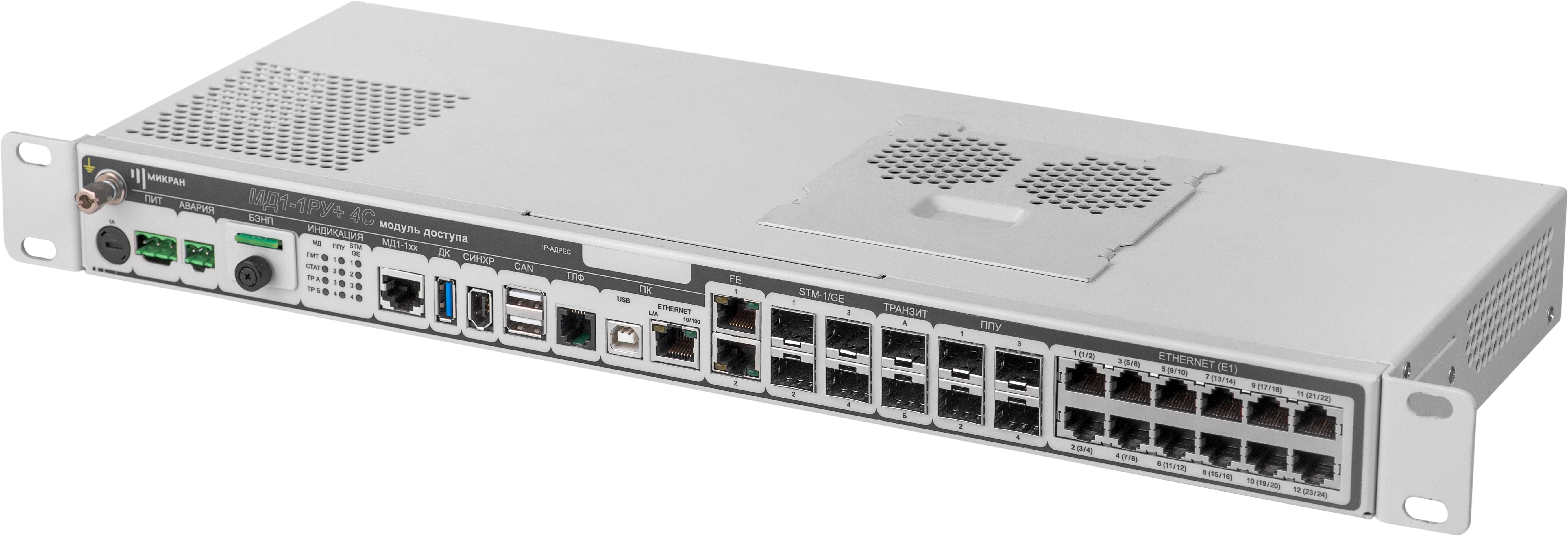

The support of transparent (without encapsulations) hybrid traffic transmission allows for smooth passage from traditional PDH / SDH networks to modern Gigabit Ethernet networks. The built-in flow switch allows to form up to 4 group streams in any combination: packet (up to 4 × GE), synchronous (up to 4 × STM-1) and plesiochronous (up to 96 × Е1) traffic.

Dedicated control and service channels are always transmitted at QPSK modulation and have higher power compared to the payload transport channel. To protect local and network parameters against accidental or unauthorized access, Y-Split uses a hierarchical password system: station, network, and temporary password (for routine or repair / restoration work).

Specification

Y-Split
