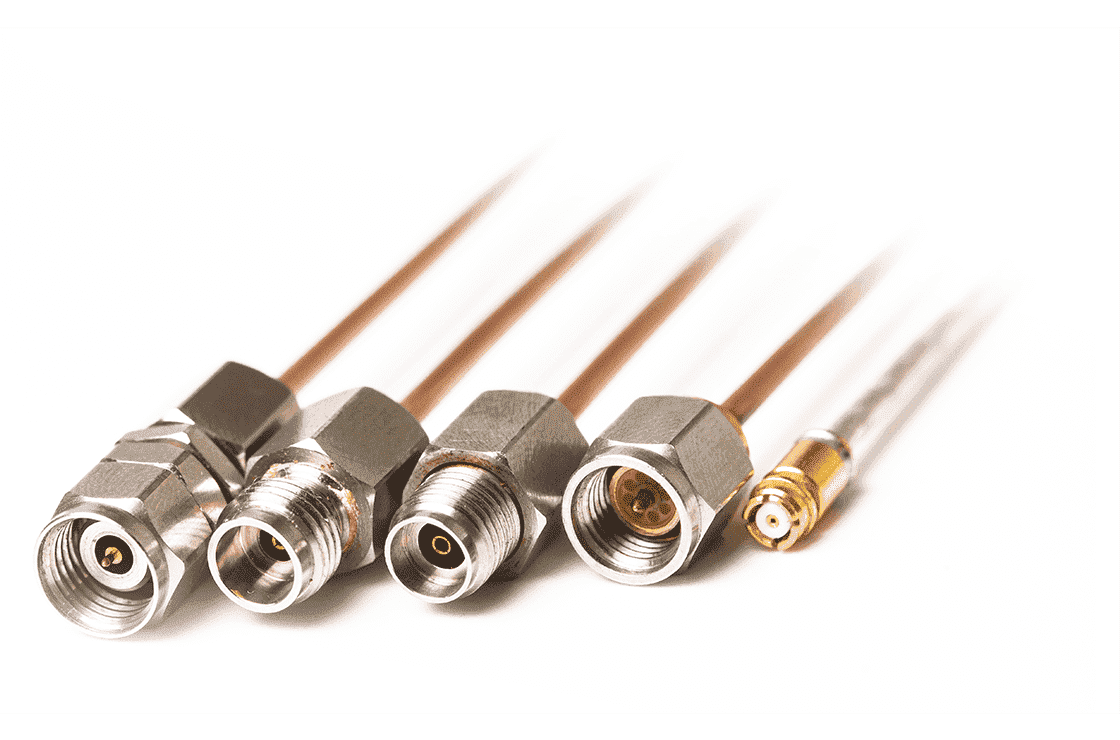

Cable Connectors

Working frequency range 0,05 до 26,5 GHz

Operating temperature: 0...+120 °C

2000 mating cycles for VK1-40 (RK1-40) and 500 for RK-20

VK1-40 (RK1-40), PKK1 and VK1-50 cable connectors are used in combination with semirigid cables, RK1-18 (VK1-18), RK1-20 (VK1-20), VK1U cable connectors — with flexible cables, and RK1-20-16R (RK1U-20-16R) — with manually shaped cables. Central conductors are made of tempered beryllium bronze and plated with wear-proof gold. The bodies of VK1-40 (RK1-40), RK1-18 (VK1-18), RK1-20 (VK1-20) cable connectors are made of stainless steel. The bodies of RK1-20-16R (RK1U-20-16R), VK1U, PKK1 and VK1-50 cable connectors are made of tempered beryllium bronze and plated with wear-proof gold. Materials and design of the cable connectors provide low loss and reflection levels, high stability of parameters for at least 5000 connect/ disconnect cycles for RK1-18 (VK1-18) connectors, 3000 connect/disconnect cycles for PKK1-20 (VK1-20) and VK1U connectors, 2000 connect/disconnect cycles for VK1-40 (RK2-40) connectors, at least 500 connect/disconnect cycles for RK1-20-16R (RK1У-20-16R), PKK1 connectors and at least 300 connect/disconnect cycles for VK1-50 connectors.

Specification

Cable connectors
