Y-Packet 2

5…24 GHZ

CAPACITY UP TO 1 GBPS

FULL LAYER 2 STACK SUPPORT

MEF CE 2.0, MPLS-TP, PWE3

LOW CAPEX AND OPEX

TOUCHLESS CONFIGURATION

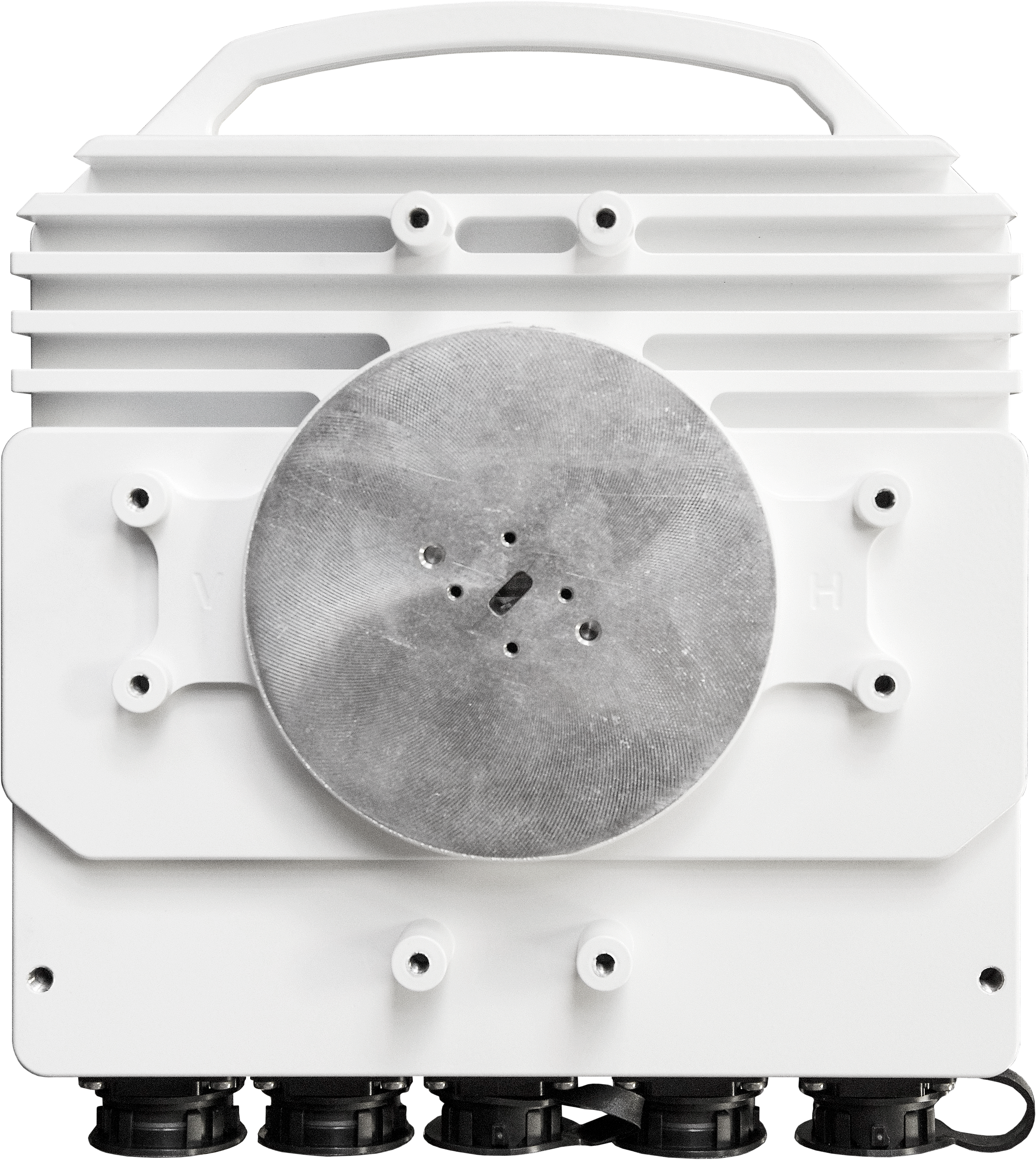

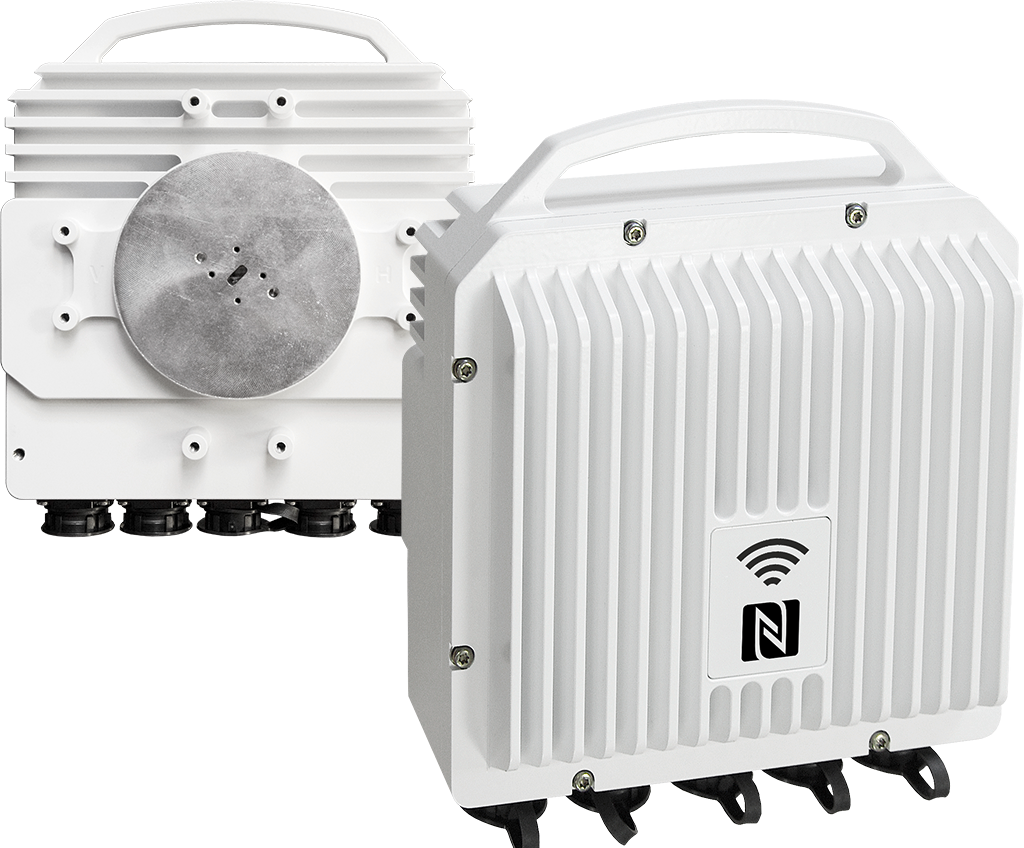

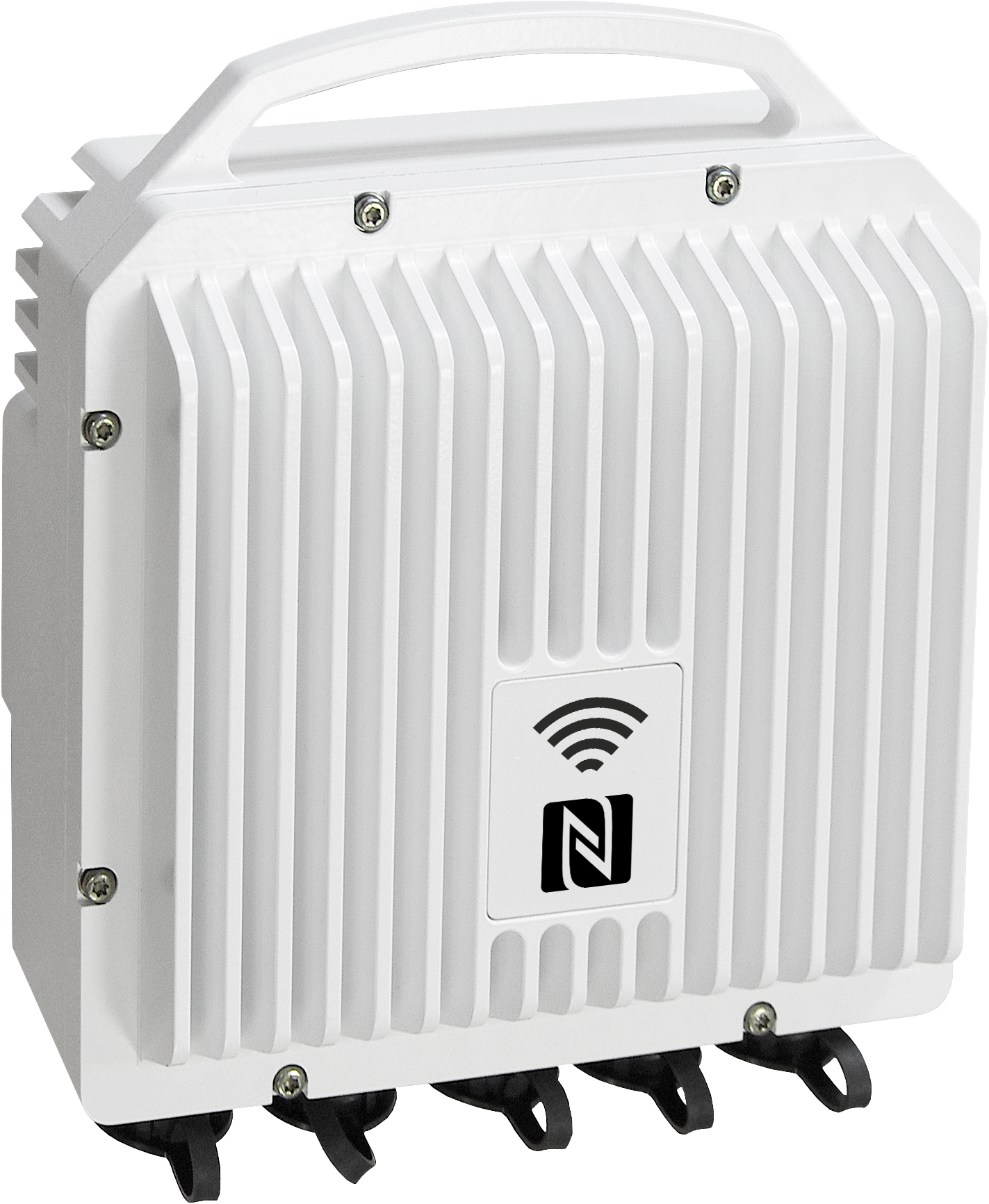

Y-Packet 2 is a high capacity Full-Ethernet point-to-point microwave radio, designed to enable service providers and enterprise network operators to deliver voice and premium data services. This outdoor solution covers a frequency range from 5 to 24 GHz in both Licensed & Unlicensed (17 & 24 GHz) bands.

Full outdoor execution simplifies the designing / installation (CAPEX) and significantly reduces rental costs (OPEX), when creating data networks by Internet service providers and telecom operators. The optical interface makes it possible to connect Y-Packet 2 to the network infrastructure, located at a distance of several tens of kilometers from the station.

The implemented adaptive modulation algorithms from QPSK to 1024QAM (ARM) and automatic transmitter power control (ATPC) allow to achieve a high-reliable communication channel, with low-level interference effects on other systems.

High modulation types, wide channel bandwidth, adaptive modulation feature, different radio protection options even with space diversity and full Layer 2 stack support — all this makes Y-Packet 2 the ideal solution for any network.

Y-Packet 2 provides a web management interface based on AJAX technology — a unique and innovative touchless configuration. Y-Packet 2 is equipped with an NFC chip, which allows to set parameters by bringing a smartphone close to the radio even when it is unpowered.

Specification

Y-Packet 2
2.16 МБ
