Directional couplers

Frequency range: 0.05 to 26.5 GHz

Operating temperature: 0...+120 °C

arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

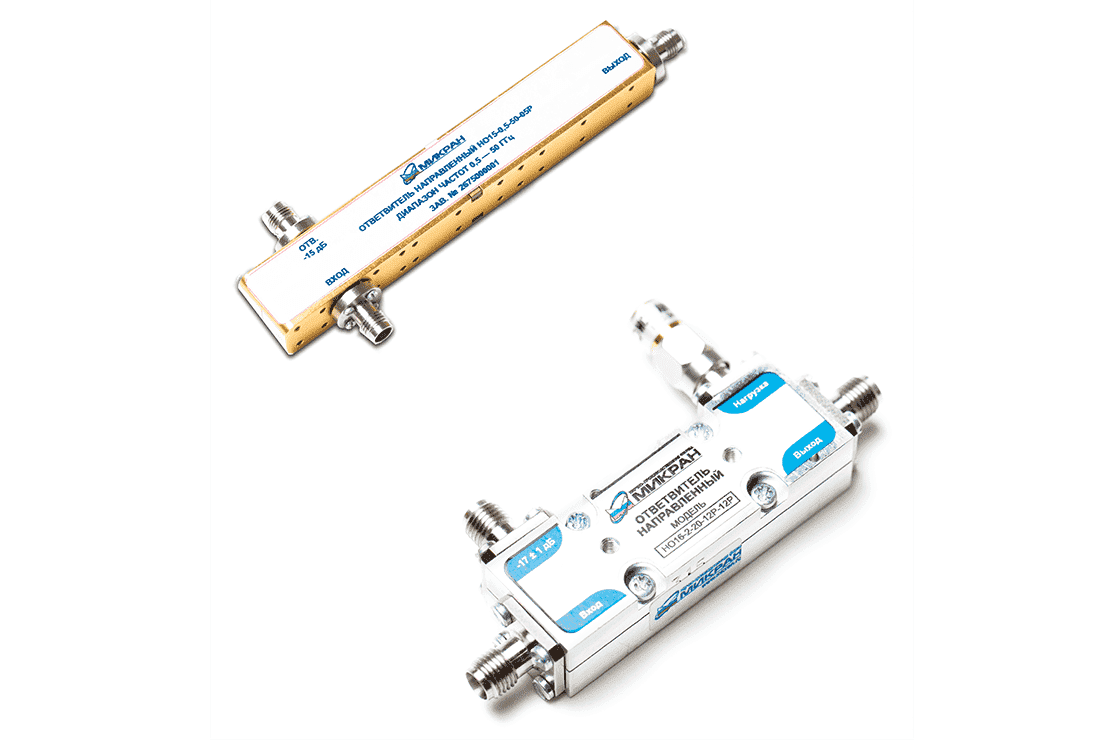

Micran directional couplers represent two-channel devices made for branching high-frequency power from the main channel into the secondary one. The directional couplers of NO15 series are used to divide direct and reflected waves. Directional couplers of NO16 series are based on a coupled microstrip line and can be used, for example, in automatic power control systems. The construction and components of our direct couplers provide high performance stability for multiple connections.

Parameter

Value


NO16-0,5-26-03R-03R


NO16-0,5-26-13R-13R


NO16-0,5-20-12R-12R


NO15-0,5-26-03R-03R


NO15-0,5-26-13R-13R


NO16А-2-20-12R-12R

Connectors

Type IX, opt. 3

(female)

Type 3.5 mm

(female)

Type SMA

(female)

Type IX, opt. 3

(female)

Type 3.5 mm

(female)

Type SMA

(female)

Frequency band, GHz

0.5…26.5 GHz

0.5…20 GHz

0.5…26.5 GHz

2…20 GHz

Ports VSWR,

max.


1.22*


1.25*


1.2*


1.22*

Branching, dB

−17.5 ± 3 (< 1 GHz)

−16+2.5 (> 1 GHz)

−0.5

−17.5 ± 2.5 (< 1 GHz)

−15 ± 1.5 (> 1 GHz)

−16 ± 1.5

Directivity, dB,

min.


16


18


22


16

Insertion loss, dB,

max.


2.2


1.5


1

Maximum input power, Wt


20 (average)

3 000 (peak)


2 (average)

1 000 (peak)


20 (average)

3 000 (peak)

Operating temperature, °C


0…+85


−60…+85


0…+120


NOTICE

* VSWR of the branching port is not regulated.



Couplers NO16-0,5-20-12R-12R, NO16-0,5-26-03R-03R and NO16-0,5-26-13R-13R are supplied without matched loads neccessary for coupler operation. When buying these devices remember to order a corresponding matched load of NS3-20 series.


Parameter

Value

NO15-0,5-50-05R-05R

NO16-2-50-05R-05R

NO12-4-50-05R-05R

Connectors

Type 2,4 mm (female)

Frequency band, GHz

0.5…50 GHz

2…50 GHz

4…50 GHz

Ports VSWR, max.

1,4*

1,3*

Branching, dB

−17.5 ± 2.5 (< 1 GHz)

−15 +5.5 (> 1 GHz)

−1.5

−16 +0.5

−2.5

−12 +2,0

−1,0

Directivity, dB, min.

16

12

Insertion loss, dB, max.

1.8

2

2.3

Maximum input power, Wt

2 (average)

1 000 (peak)

Operating temperature, °C

−60…+85

0…+85


Specification

Directional couplers
