Waveguide calibration kits for VNA

Add to cart
Add to favorite
arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

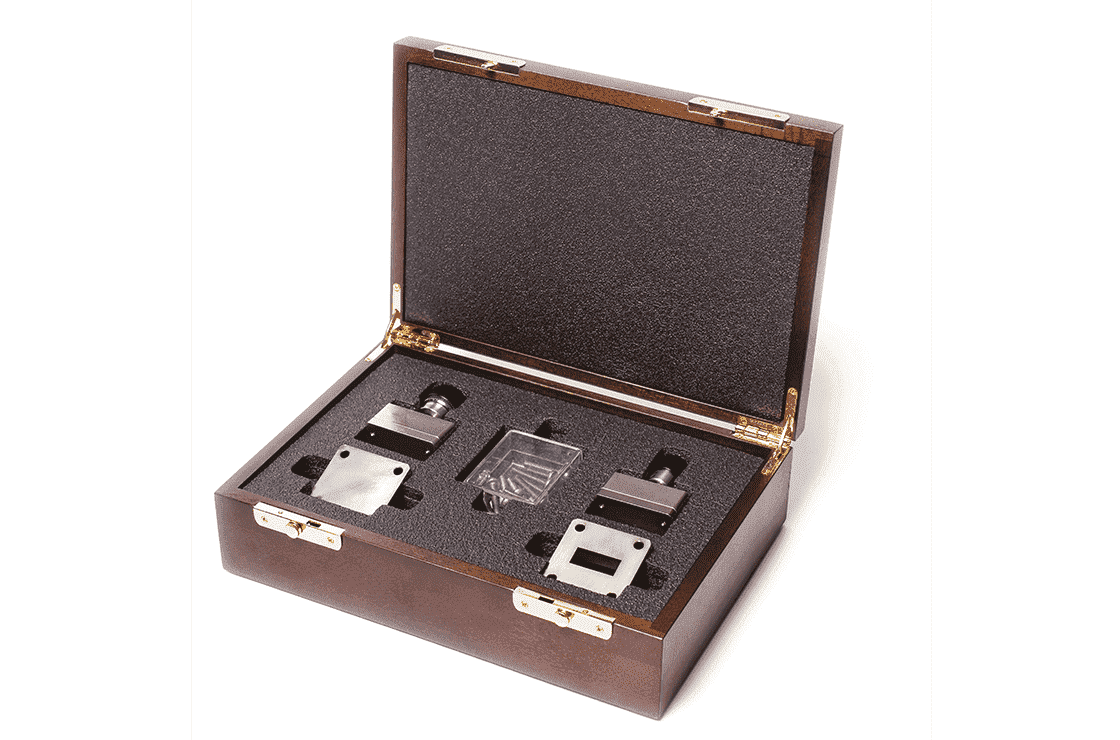

Waveguide calibration kits are intended for the calibration of vector analyzers in waveguides tracts with a cross section of 5.2 × 2.6 mm, 7.2 × 3.4 mm, 11 × 5.5 mm, 16 × 8 mm, 23 × 10 mm and 28.5 × 12.6 mm. The complete two-port calibration kit contains sets of coaxial-wave transitions that allow connecting devices in the waveguide tract with devices in coaxial tract, as well as quarter-wave flanges and short-circuit plates. The calibration allows to carry our measurements of one and two-port devices in the waveguide tract at vector network analyzers of Micran or other manufacturers.


Marking

Tract cross-section, mm

Frequency range, GHz

PKV№1

PKV№2

NKMV-U-28.5×12.6-01-01R


28.5×12.6


6.85…9.93

PKV1-01-28.5×12.6

PKV1-01R-28.5×12.6

NKMV-U-28.5×12.6-11-11R

PKV1-11-28.5×12.6

PKV1-11R-28.5×12.6

NKMV-U-28.5×12.6-01R-01R

PKV1-01R-28.5×12.6

PKV1-01R-28.5×12.6

NKMV-U-28,5×12,6-11R-11R

PKV1-11R-28,5×12,6

PKV1-11R-28,5×12,6

NKMV-U-23×10-01-01R




23×10




8,15…12,05

PKV1-01-23×10

PKV1-01R-23×10

NKMV-U-23×10-11-11R

PKV1-11-23×10

PKV1-11R-23×10

NKMV-U-23×10-01R-01R

PKV1-01R-23×10

PKV1-01R-23×10

NKMV-U-23×10-11R-11R

PKV1-11R-23×10

PKV1-11R-23×10

NKMV-U-23×10-03-03R

PKV1-03-23×10

PKV1-03R-23×10

NKMV-U-23×10-13-13R

PKV1-13-23×10

PKV1-13R-23×10

NKMV-U-23×10-03R-03R

PKV1-03R-23×10

PKV1-03R-23×10

NKMV-U-23×10-13R-13R

PKV1-13R-23×10

PKV1-13R-23×10

NKMV-U-16×8-01-01R




16x8




11.83…17.99

PKV1-01-16x8

PKV1-01R-16x8

NKMV-U-16×8-11-11R

PKV1-11-16x8

PKV1-11R-16x8

NKMV-U-16×8-01R-01R

PKV1-01R-16x8

PKV1-01R-16x8

NKMV-U-16×8-11R-11R

PKV1-11R-16x8

PKV1-11R-16x8

NKMV-U-16×8-03-03R

PKV1-03-16x8

PKV1-03R-16x8

NKMV-U-16×8-13-13R

PKV1-13-16x8

PKV1-13R-16x8

NKMV-U-16×8-03R-03R

PKV1-03R-16x8

PKV1-03R-16x8

NKMV-U-16×8-13R-13R

PKV1-13R-16x8

PKV1-13R-16x8

NKMV-U-11×5.5-03-03R


11×5.5


17.44…25.95

PKV1-03-11×5.5

PKV1-03R-11×5.5

NKMV-U-11×5.5-13-13R

PKV1-13-11×5.5

PKV1-13R-11×5.5

NKMV-U-11×5.5-03R-03R

PKV1-03R-11×5.5

PKV1-03R-11×5.5

NKMV-U-11×5.5-13R-13R

PKV1-13R-11×5.5

PKV1-13R-11×5.5

NKMV-U-7.2×3.4-14R-14


7.2×3.4


25.95…37.5

PKV1-14-7.2×3.4

PKV1-14R-7.2×3.4

NKMV-U-7.2×3.4-14R-14R

PKV1-14R-7.2×3.4

PKV1-14R-7.2×3.4

NKMV-U-7.2×3.4-05-05R

PKV1-05-7.2×3.4

PKV1-05R-7.2×3.4

NKMV-U-7.2×3.4-05R-05R

PKV1-05R-7.2×3.4

PKV1-05R-7.2×3.4

NKMV-U-5.2×2.6-05-05R

5.2×2.6

37.5…50

PKV1-05-5.2×2.6

PKV1-05R-5.2×2.6

NKMV-U-5.2×2.6-05R-05R

PKV1-05R-5.2×2.6

PKV1-05R-5.2×2.6


Specification

Waveguide calibration kits
