PKM2-18 series

High performance stability for minimum 3000 connections

Operating temperature: −60...+100 °C

Low losses and refraction in all operating band from 0 to 18 GHz

Add to cart
Add to favorite
arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

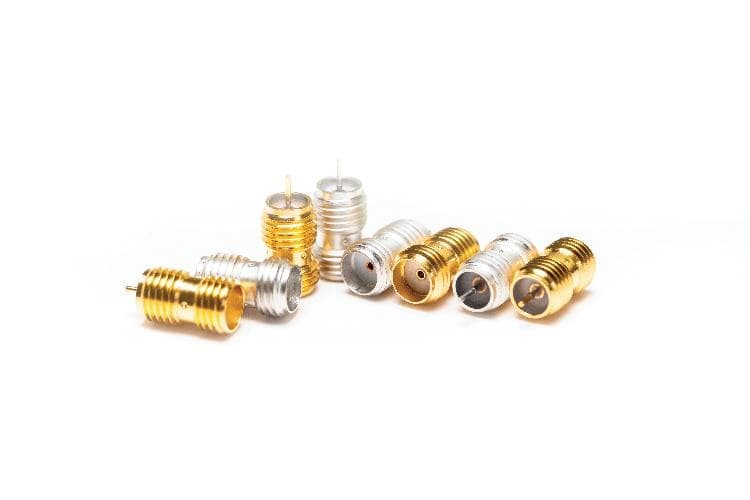

This series hermetic adapters are designed for signal input-output in microwave modules. All adapters operate in a 0...18 GHz frequency band. The main conductor has wearproof gold coating, the outer conductor — with gold or stannum-bismuth. Thread on the module side is M6×0.75, on the external connection side — M6×0.75 or 1/4"-36UNS-2A.




Marking



Connector



Coating

Innsertion loss, dB, max.



VSWR,

max. (typical)


Hermecity, m3∙Pa/s (sm3/s)

Insulation resisnatce, Mohm,

min.

Maximum current, A, (maximum operation voltage, V)

PKM2-18-02R-0,6/3-1

Type IX, opt. 1

(female)



Stannum-

Bismuth








1









1.22

(sort 1)


1.4

(sort 2)








from 1.3∙10-11 to 1.3∙10-9 (from 10-10 to 10-8)






1 000











1 (200)






PKM2-18-02R-0,6/2.3-1

PKM2-18-12R-0,6/3-1

Type SMA

(female)

PKM2-18-12R-0,6/2,3-1

PKM2-18-02R-0,6/3-1-BR

Type IX, opt. 1

(female)

PKM2-18-02R-0,6/3-2

Type IX, opt. 1

(female)



Gold

PKM2-18-02R-0,6/2,3-2

PKM2-18-12R-0,6/3-2

Type SMA

(female)

PKM2-18-12R-0,6/2,3-2

PKM2-18-02R-0,6/3-2-BR

Type IX, opt. 1

(female)

Specification

PKM2-18
702 КБ
