Vector Network Analyzers R42 "Panorama" series

Frequency range from 0.3 /10 MHz to 13.5 / 26.5 GHz

Dynamic range 145 dB with 1 Hz IF filter band

Wide range of output power level tuning: −90 dBm to + 12 / + 15 dBm

Low channel noisiness: 0.002 dB SD with 1 kHz IF filter band

Waveguide measurements (TRL calibration)

Line specification using tables or direct chart drawing

arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

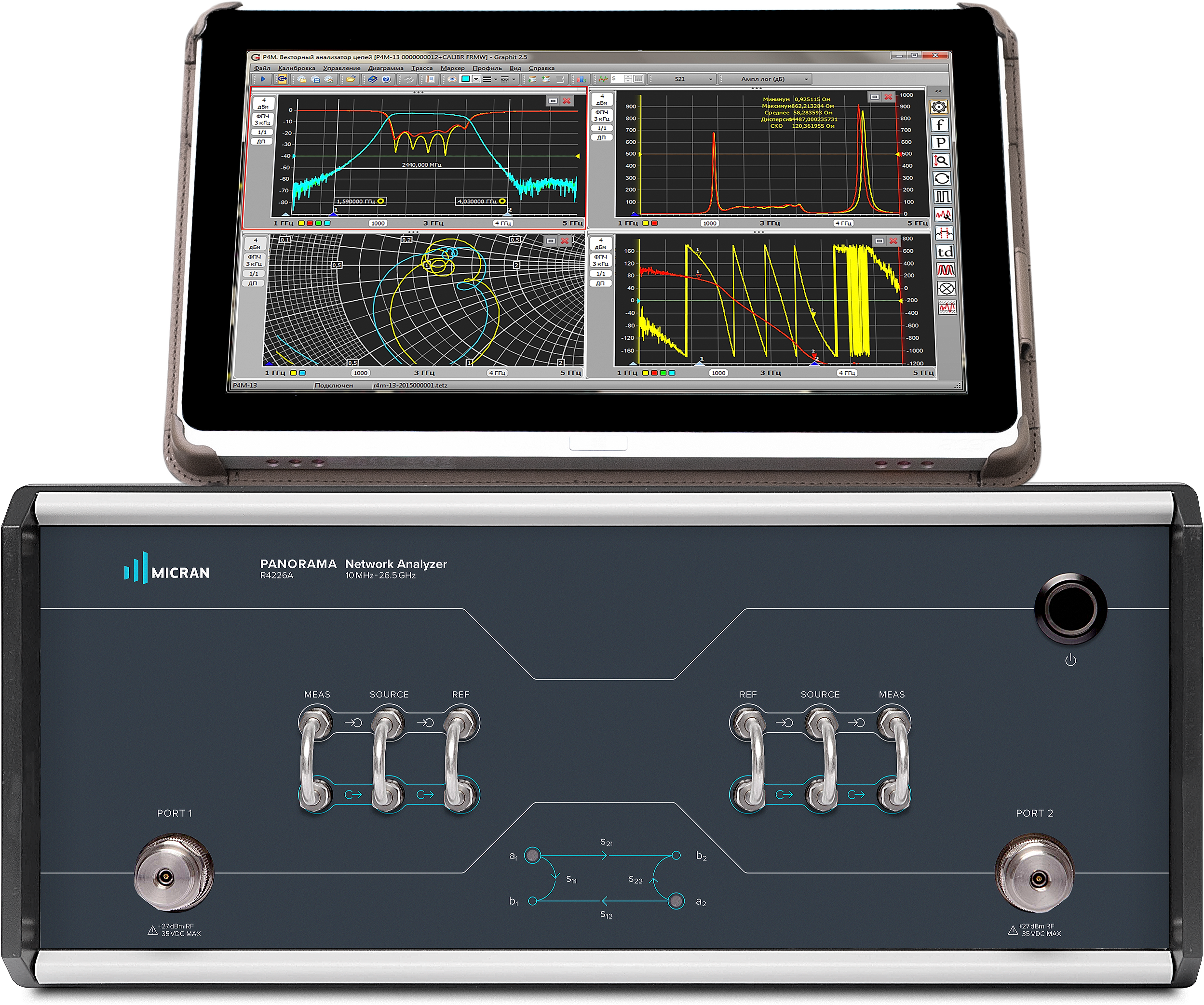

Micran presents a new generation of vector network analyzers — R4226/R4213. The analyzers based on modular architecture offer high dynamic range and maximum output power in its class.
Among R4213 / R4226 applications are research, alignment, testing, control and manufacturing of microwave devices used in radioelectronics, communications, radars and T&M equipment. The analyzer can be operated with SCPI commands, what allows the device to be integrated into automated control and measurement systems of various complexity.

Specification

Vector Network Analyzers R42 "Panorama" series
