Detectors

Compact size

Frequency range: 0.01 to 50 GHz

Unevenness for amplitude-frequency and VSW inputs

Tipical load — 30 kOhm

arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

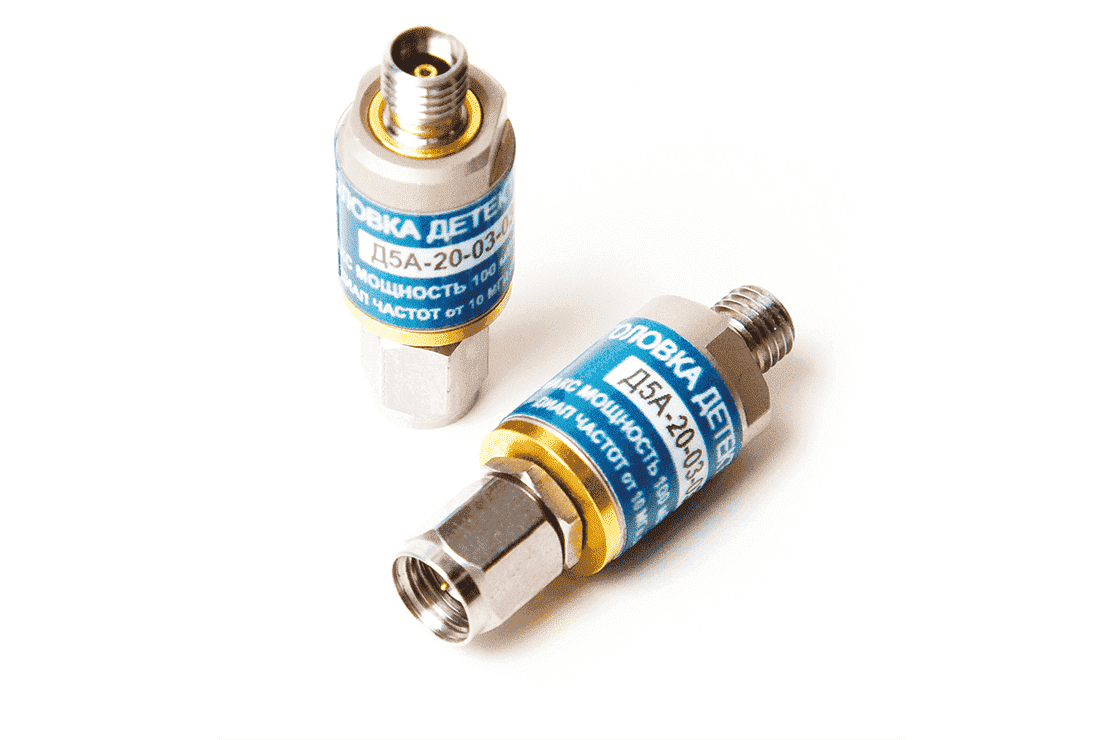

Microwave detetors of D5 series are intended for continous and modulated microwave signals detection in a wide frequency range. We use a special construction and hi-tech components, which makes pur detectors very compact and show great performance in a wide operating band, low unevenness for amplitude-frequency and standing-wave inputs, and wide dinamic bandwidth. These detectors are used in T&M equipment and automatic power control systems. Detector reaction time depends on the load resistane (RL) that is tuned to a detector. Typical sensitivity on power (γ) level in a low-signal mode is 500 mV/mWt.

Marking

Connectors

Frequency band, GHz

Amplitude-frequency unevenness, dB

VSWR,

max.

Pmax dBm

Polarity

Input

Output

D5A-20-03-03R

Type IX, opt. 3

(male)

Type IX, opt. 3

(female)

0.01…20

±1.5

1.25

+21

D5B-20-03-03R

+

D5A-20-03-13R

Type IX, opt. 3

(male)

Type 3.5 mm

(female)

D5B-20-03-13R

+

D5A-20-13-03R

Type 3.5 mm

(male)

Type IX, opt. 3

(female)

D5B-20-13-03R

+

D5A-20-13-13R

Type 3.5 mm

(male)

Type 3.5 mm

(female)

D5B-20-13-13R

+

D5A-50-05-03R

Type 2.4 mm

(male)

Type IX, opt. 3

(female)

0.01…50

±1.5

(0.01…26.5 GHz)

±3.5

(26.5…50 GHz)

1.25

(0.01…26.5 GHz)

1.5

(26.5…40 GHz)

2.5

(40…50 GHz)

+25

D5B-50-05-03R

+

D5A-50-05-13R

Type 2.4 mm

(male)

Type 3.5 mm

(female)

D5B-50-05-13R

+
