Noise figure meters H5M series

Frequency range from 10 MHz to 4/20 GHz

Noise Ratio and Gain measurements

Frequency converter measurements with a fixed or external heterodines

Built-in thermostatic YIG preselector

High measurement speed

Extend the NFA solution up to 50 GHz with special downconverter unit

SCPI Language Compatibility


Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

H5M noise figure analyzers (IKSH) are designed to  measure noise figure and transmission coefficient of receiving-amplifying devices. H5M operation principle is based on comparison of measured noise with noise of known intensity, generated by measuring noise generator (NG) characterized by excessive relative noise temperature (ERNT). Measurement is preceded by calibration to determine the characteristics of IKSH receive path, required for precise calculation of gain and noise figure of a measured device.

H5M noise figure analyzers include two device types that differ in operating frequency range:

  • H5M-04: 10 MHz to 4 GHz;
  • H5M-18: 50 MHz to 20 GHz;

H5M is controlled by external PC with Graphit H5M software installed. The device and PC are communicating via Ethernet. Multi-channel synchronization system provides joint operation of H5M series IKSH and other devices. Control of H5M with SCPI commands provides integration of the device with automated instrumentation systems. Depending on combination of hardware options, the noise figure analyzers are subdivided into versions. You may add hardware options to the selected version of the device, which provides extension of device functionality.

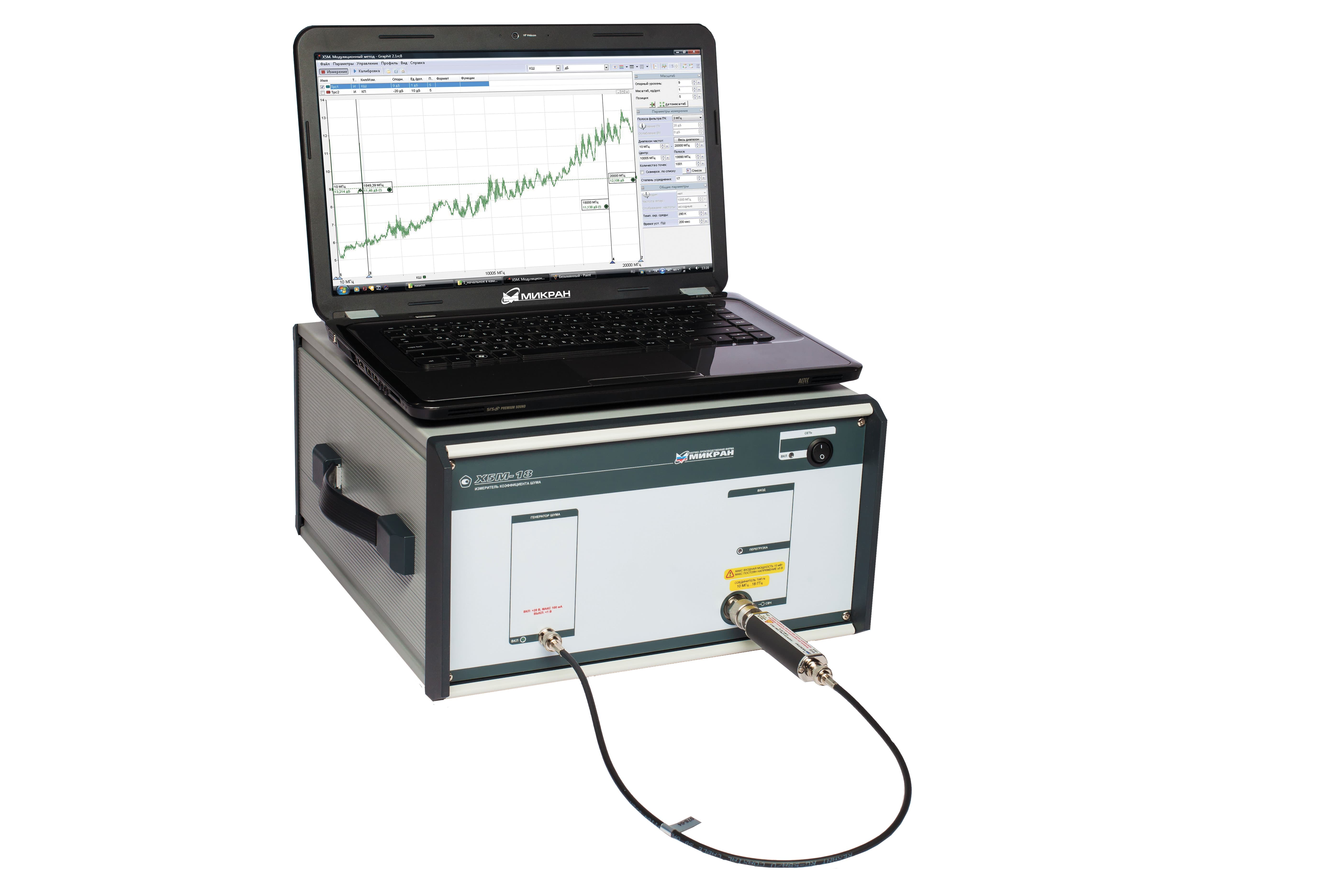

H5M noise figure analyzers
