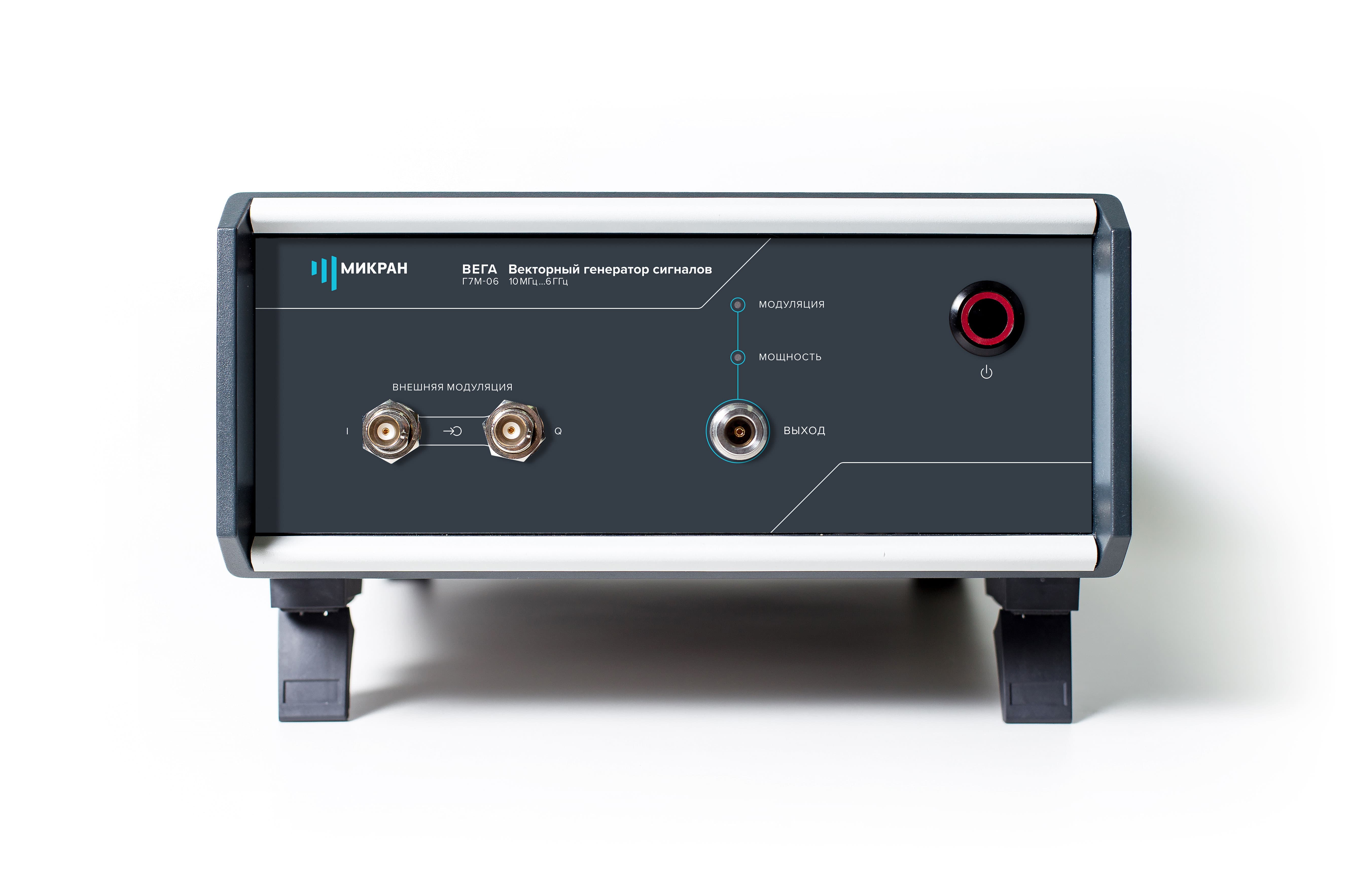

Vector Signal Generator G7M-06 Vega

Frequency range from 10 MHz to 6 GHz

Wide output power control range from −90 dBm to +12 dBm

Low phase noise −130 dBc/Hz at 20 kHz offset from 1 GHz carrier

Analog modulation types: amplitude, frequency, phase and pulse modulations

Custom digital modulation

Built-in modulation signal generator

Modulated signal band at 100 MHz


Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

G7M-06 signal generator is designed to generate continuous harmonic, analog-modulated and digital-modulated signals. Such devices are used for analyzing, tuning, testing and monitoring during manufacturing of RF & MW devices and equipment used in communications, radars, instrument engineering and measurement equipment. The G7M-06 signal generator is controlled via universal SCPI commands by external PC with VEGA software installed, integrating G7M-06 into automated instrumentation systems.
