Between series 7,0/3,04 mm and 2,4/1,042 mm

Shield attenuation — ≥100 dB

High performance stability for up to 2000 connections

Operating temperature: −60...+85 °C

Low losses and refraction

Add to cart

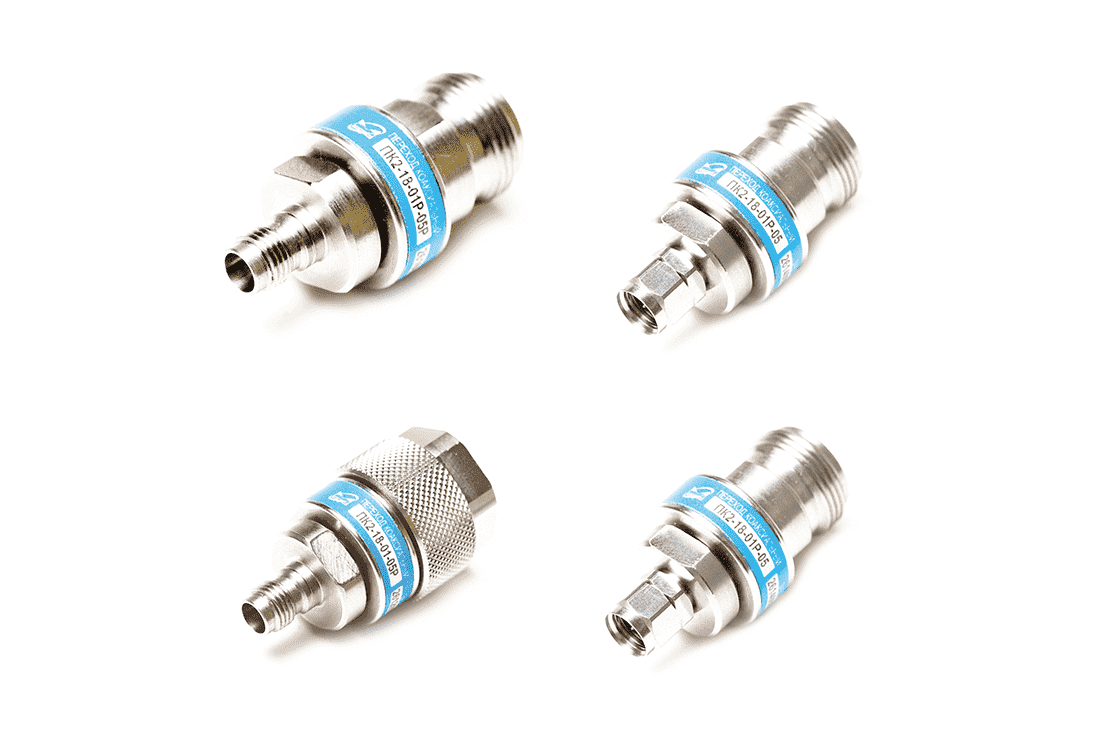

Coaxial adapters of this series are designed for the connection of microwave devices operating in a 7.0/3.04 mm tract with ones in a 2.4/1.042 mm tract in a frequency band of 0...18 GHz. The adapters can have either «male-male», «female-female» or «male-female» connectors type with inch or metric thread on a 7.0/3.04 mm tract side. Connectors body and screws are made of stainless steel. Central conductors are made of tempered beryllium copper and have wearproof gold coating. Applied insulant has a low dielectric conductivity and high durability. On a special request, the adapters can be modified for operating temperature up to +110 °C.

Marking	Connectors	Frequency range, GHz	VSWR, max. (typical)		Insertion loss, dB, max. (typ.)
			0…12 GHz	12…18 GHz	0…12 GHz	12...18 GHz
PK2-18-01R-05R	Type III (female) - Type 2.4 mm (female)	0...18	1.12(1.07)	1.15 (1.1)	0.25 (0.1)	0.3 (0.15)
PK2-18-11R-05R	Type N (female) - Type 2.4 mm (female)
PK2-18-01-05	Type III (male) - Type 2.4 mm (male)
PK2-18-11-05	Type N (male) - Type 2.4 mm (male)
PK2-18-01R-05	Type III (female) - Type 2.4 mm (male)
PK2-18-11R-05	Type N (female) - Type 2.4 mm (male)
PK2-18-01-05R	Type III (male) - Type 2.4 mm (female)
PK2-18-11-05R	Type N (male) - Type 2.4 mm (female)

7.03.04 mm and 2.41.042 mm
