In series 2,4/1,042 mm

Shield attenuation — ≥90 dB

High performance stability for up to 2000 connections

Operating temperature: −60...+85 °C

Low losses and refraction

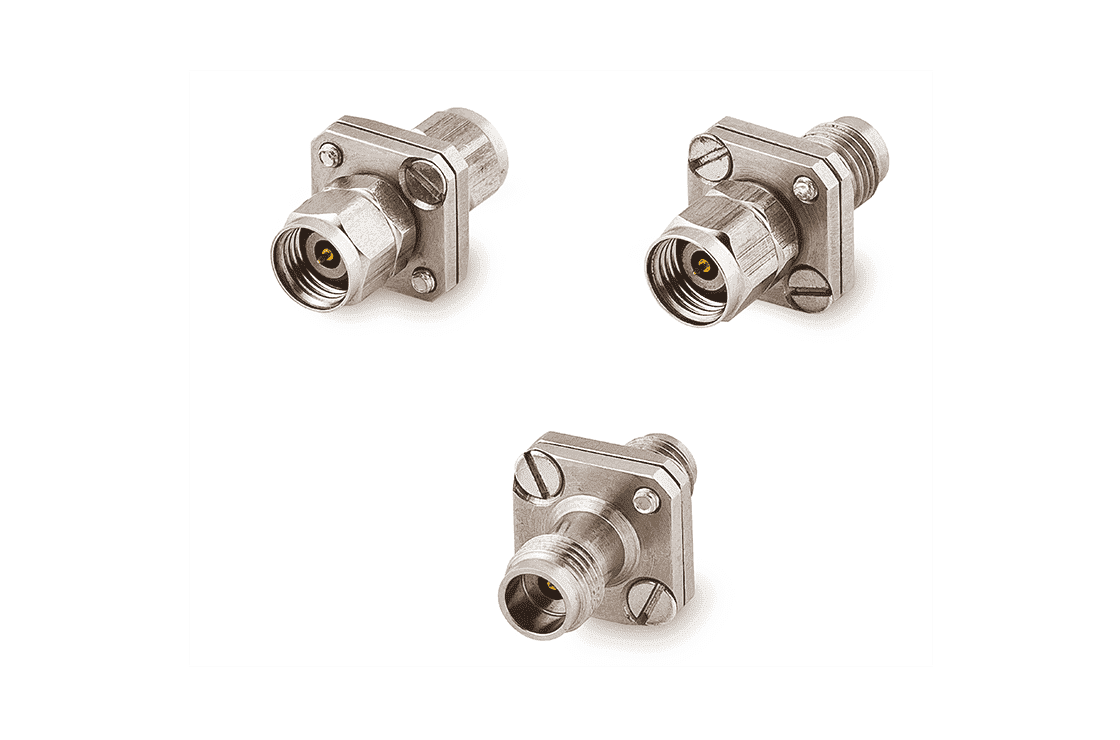

Coaxial adapters for 2.92/1.27 mm tract are used with T&M equipment in a frequency band of 0...50 GHz. The adapters can have either «male-male», «female-female» or «male-female» connectors type with inch or metric thread. These series connectors have minimal insertion losses and refractions in a frequency band up to 40 Ghz. Connectors body and screws are made of stainless steel. Central conductors are made of tempered beryllium copper and have wearproof gold coating. Applied insulant has a low dielectric conductivity and high durability.

Marking

Connectors


Frequency

range,

GHz

VSWR, max. (typical)

Insertion loss, dB, max. (typ.)

0…20 GHz

20...50 GHz

0…20 GHz

20...50 GHz

PK2-50-05R-05R

Type 2.4 mm (female) - Type 2.4 mm (female)

0.50

1.1 (1.08)

1.2(1.15)

0.2 (0.08)

0.3(0.12)

PK2-50-05-05

Type 2.4 mm (male) - Type 2.4 mm (male)

PK2-50-05R-05

Type 2.4 mm (female) - Type 2.4 mm (male)

PK2A-50-05R-05R

Type 2.4 mm (female) - Type 2.4 mm (female)

PK2A-50-05-05

Type 2.4 mm (male) - Type 2.4 mm (male)

PK2A-50-05R-05

Type 2.4 mm (female) - Type 2.4 mm (male)


Specification

2.4/1.042 mm
