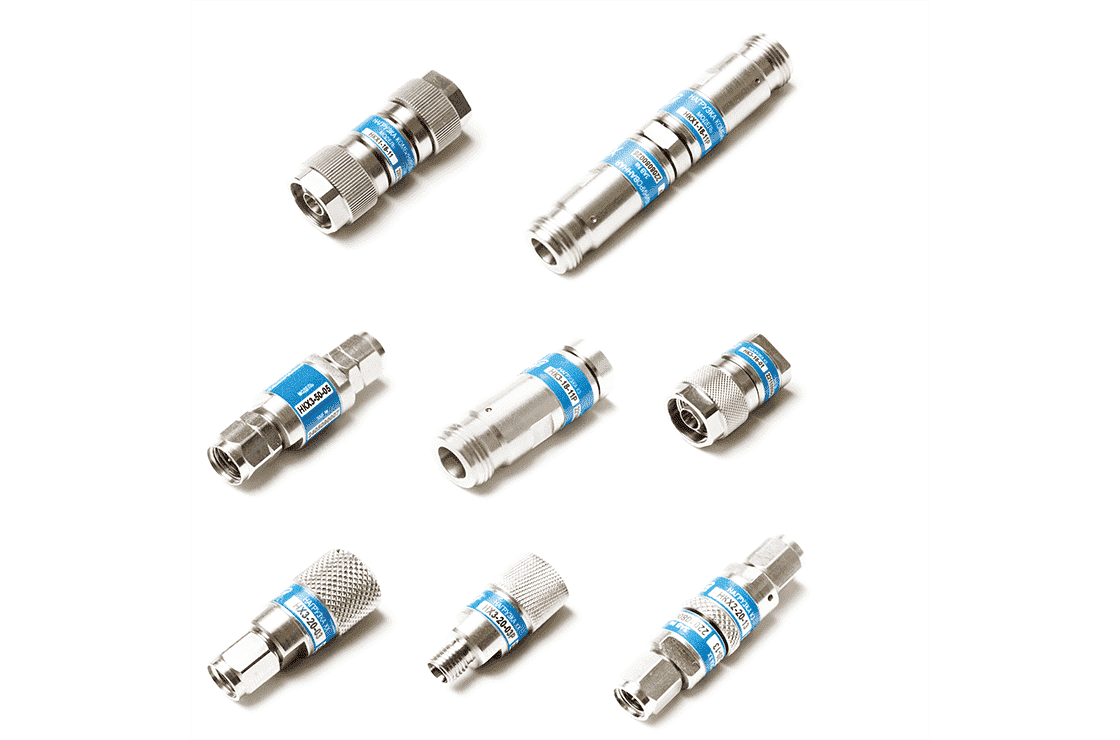

Open circuit loads and short circuit loads

High performance stability with low losses and refraction

Low dielectric conductivity

Operating temperature: −60...+110 °C

Short-circuit loads of NK series are used to create full signal reflection in a coaxial tract in a wide frequency band with cophased direct and reflected waves.
Shielded open-circuit loads of NH series are used to create full signal reflection in a coaxial tract in a wide frequency band with antiphased direct and reflected waves
These loads can be applied for scalar or vector network analyzers calibration:
— executed in 7.0/3.04 mm tract operate in a band of 0...18 GHz
— executed in 3.5/1.52 mm tract operate in a band of 0...20 GHz
— executed in 2.4/1.042 mm tract operate in a band of 0...50 GHz


Marking

Connector

Frequency band, GHz

Phase error

Minimal reflection factor

Open-circuit loads (OC) НHZ series

НHZ-18-01

Type III (male)


0…18


±2.0°






0.98

НHZ-18-11

Type N (male)

НHZ-18-01R

Type III (female)

НHZ-18-11R

Type N (female)

НHZ-20-03

Type IX, opt. 3 (male)


0…20


±1.5°

НHZ-20-13

Type 3.5 mm (male)

НHZ-20-03R

Type IX, opt. 3 (female)

НHZ-20-13R

Type 3.5 mm (female)

НHZ-50-05

Type 2.4 mm (male)

0…50

±5.0°

НHZ-50-05R

Type 2.4 mm (female)



Short-circuit loads (SC) NKZ series

Frequency band, GHz

Phase error

Minimal reflection factor

NKZ-18-01

Type III (male)


0…18


±2.0°






0.98

NKZ-18-11

Type N (male)

NKZ-18-01R

Type III (female)

NKZ-18-11R

Type N (female)

NKZ-20-03

Type IX, opt. 3 (male)


0…20


±1.5°

NKZ-20-13

Type 3.5 mm (male)

NKZ-20-03R

Type IX, opt. 3 (female)

NKZ-20-13R

Type 3.5 mm (female)

NKZ-50-05

Type 2.4 mm (male)

0…50

±5.0°

NKZ-50-05R

Type 2.4 mm (female)



Integrated loads SC and OC NKH series

Frequency band, GHz

SC and OC phase difference

Minimal reflection factor

NKH1-18-01

Type III (male)


0…18


180 ± 10.0°





0.98

NKH1-18-11

Type N (male)

NKH1-18-01R

Type III (female)

NKH1-18-11R

Type N (female)

NKH2-20-03

Type IX, opt. 3 (male)


0…20


180 ± 8.0°

NKH2-20-13

Type 3.5 mm (male)

NKH2-20-03R

Type IX, opt. 3 (female)

NKH2-20-13R

Type 3.5 mm (female)

NKH3-50-05

Type 2.4 mm (male)

0…50

  1. 5.0°


Specification
