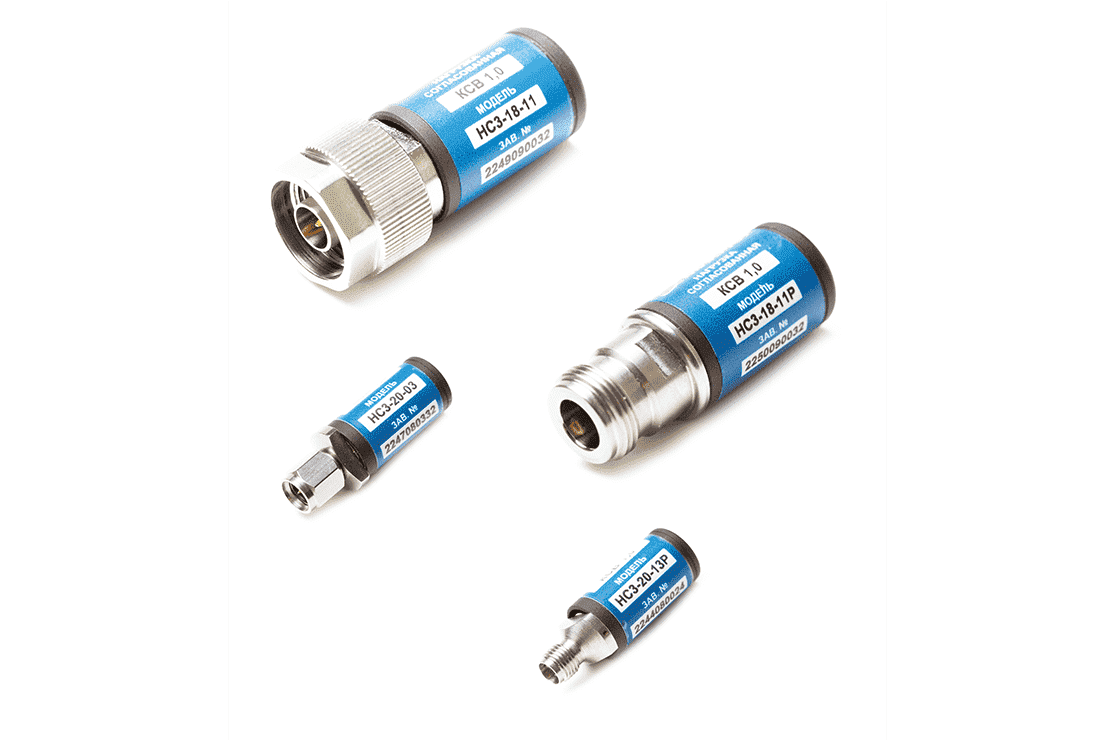

Matched loads
Operating frequency band: 0...50 GHz
Operating temperature: −60...+85 °C
Shield attenuation — ≥100 dB
High performance stability for multitude of connections
Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»
NS3 loads:
— executed in 7.0/3.04 mm tract operate in a band of 0...18 GHz
— executed in 3.5/1.52 mm tract operate in a band of 0...20 GHz
— executed in 2.4/1.042 mm tract operate in a band of 0...50 GHz
|
Marking |
Connector |
Frequency range, GHz |
VSWR, max. (typical) |
Pin*, Wt, max. |
||
|
Matched loads NS3-18 |
||||||
|
NS3-18-01 |
Type III (male) |
0…18 |
1.08 (1.06) |
2** |
||
|
NS3-18-11 |
Type N (male) |
|||||
|
NS3-18-01R |
Type III (female) |
|||||
|
NS3-18-11R |
Type N (female) |
|||||
|
Matched loads NS3-20 |
||||||
|
NS3-20-03 |
Type IX, opt. 3 (male) |
0…20*** |
1.08 (1.06) |
1** |
||
|
NS3-20-13 |
Type 3.5 mm (male) |
|||||
|
NS3-20-03R |
Type IX, opt. 3 (female) |
|||||
|
NS3-20-13R |
Type 3.5 mm (female) |
|||||
|
Matched loads NS3-50 |
||||||
|
NS3-50-05 |
Type 2.4 mm (male) |
0…50 |
1.15 (1.12) |
1.5** |
||
|
NS3-50-05R |
Type 2.4 mm (female) |
|||||
NOTICE
* Maximum lasting power diissipation on direct current.** Value given for normal climatic conditions. In case of ambient temperature elevation we recommend output power decrease.
*** On special request, loads for up to 32 GHz are available.
Specification
| Matched loads |
