In series 7,0/3,04 mm

Shield attenuation — ≥100 dB

High performance stability for up to 5000 connections

Operating temperature: −60...+85 °C

Low losses and refraction

arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

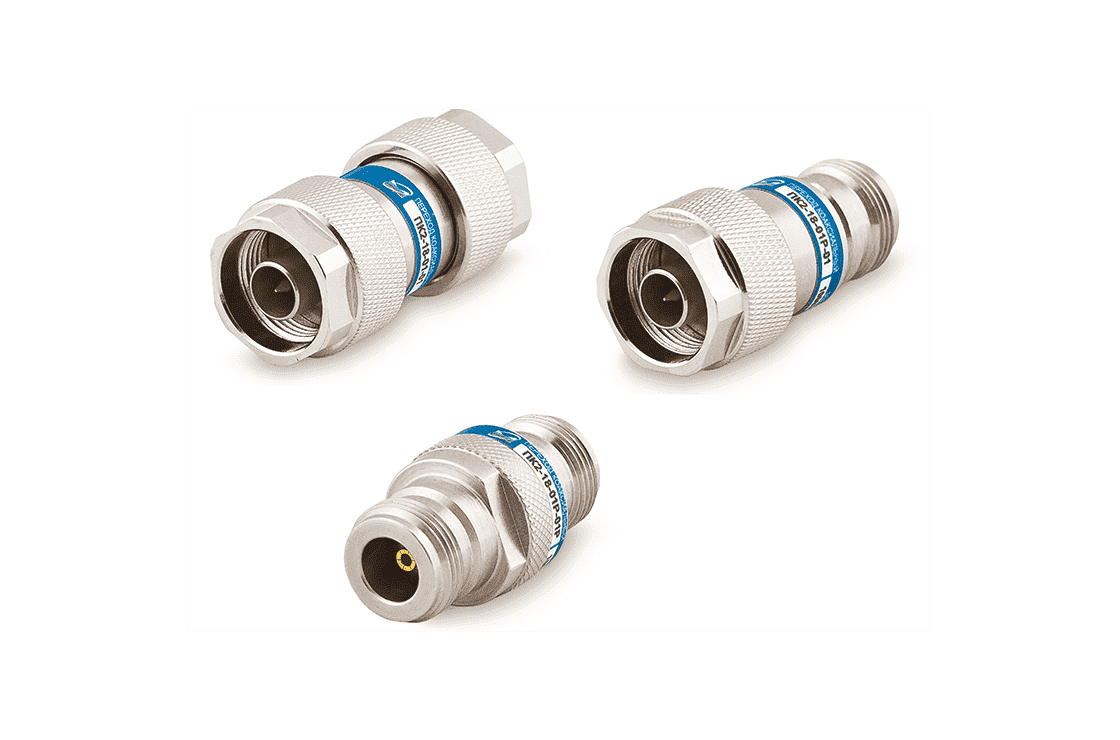

Coaxial adapters for 7.0/3.04 mm tract are used with T&M equipment in a frequency range of 0...18 GHz. The adapters can have either «male-male», «female-female» or «male-female» connectors type with inch or metric thread. Connectors body and screws are made of stainless steel. Central conductors are made of tempered beryllium copper and have wearproof gold coating. Applied insulant has a low dielectric conductivity and high durability. On a special request, the adapters can be modified for operating temperature up to +110 °C.

Marking

Connectors

Frequency range,

GHz

VSWR, max. (typical)

Insertion loss, dB, max. (typ.)

0.12 GHz

12.18 GHz

PK2-18-01R-01R

Type III (female) - Type III (female)

0...18

1.1

(1.06)

1.15

(1.1)

0.15

(0.07)

PK2-18-01R-11R

Type III (female) - Type N (female)

PK2-18-11R-11R

Type N (female) - Type N (female)

PK2-18-01-01

Type III (male) - Type III (male)

PK2-18-01-11

Type III (male) - Type N (male)

PK2-18-11-11

Type N (male) - Type N (male)

PK2-18-01R-01

Type III (female) - Type III (male)

PK2-18-01R-11

Type III (female) - Type N (male)

PK2-18-11R-01

Type N (female) - Type III (male)

PK2-18-11R-11

Type N (female) - Type N (male)

Specification

7.03.04 mm
